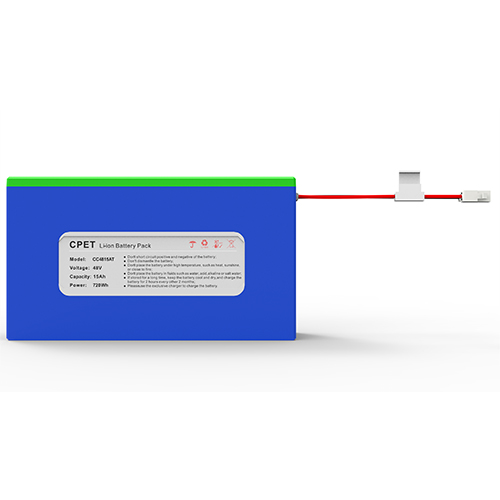

1. Product Introduction of 48V Lithium Ion Battery
This product is a ternary lithium battery pack produced by Chilwee company, which is mainly used for electric bicycles with rated voltage of 48V and rated power ≤ 350W. The battery pack is composed of flexible cells in series (including protection board). The battery pack has the characteristics of green environmental protection, strong kinetic energy, high energy ratio, ultra long cycle life, safe use and so on.
Advantages of 48V lithium ion batteries
High energy density.
High open circuit voltage: with the change of electrode material, open circuit voltage up to 3.3~4.2V.
High output power: 300~1500W/kg (@20sec) according to different electrode materials.
No memory effect: lithium iron phosphate battery has no memory effect, the battery can be charged and discharged at any time, no discharge, easy to use and maintenance.
Low self-discharge: < 5% ~ 10% / month. Smart lithium-ion battery built-in monitoring circuit, the monitoring circuit of the operating current is even higher than the self-discharge current.
Wide operating temperature range: -20 ℃ ~ 60 ℃ can work normally.
2. Product Parameter (Specification) of 48V Lithium Ion Battery
Product Name
Brand
Chilwee
Battery Model
CC4815AT
Rated Voltage
48 V
Rated Capacity
15 Ah
Charging Voltage
54.6V±0.2V
Discharge Cut Off Voltage
39±0.2V
Standard Charge Current
2A
Maximum Charging Current
5A
Standard Discharge Current
10A
Maximum Continuous Discharge Current
15A
Impedance (Max, at 1000Hz.)
≤150mΩ
Shell Material
Engineering Plastic
Weight
3.7±0.2Kg
Monthly Self Discharge Rate
≤5%
Dimension (mm)
252X142X70mm
cycle life
500 DOD≥70%
Charging Mode (CC / CV)
39.5 Kg
Charging Temperature
0℃~45℃
Discharge Temperature
-20℃~50℃
Factory Voltage
49±2V
Place of Origin
China
LI-Ion Battery
3. Product Advantages of 48V Lithium Ion Battery
1) High energy density - Ability with higher potential.
2) It doesn't take long to boot up when new. A regular charge is enough.
3) Relatively low self-discharge - less than half the self-discharge of nickel-based batteries.
4) Low maintenance - no need for regular discharge; No memory.
5) Dedicated batteries can provide very high currents for applications such as power tools.
4. Product Qualification of the 48V Lithium Ion Battery
5. FAQ
Q1 How long is your delivery time?
A1 Generally speaking, the whole production cycle from raw materials to finished products takes 15 days, but we can deliver the goods within 7 days, and we can change it according to the quantity or other conditions, because we have the stock of raw materials for semi-finished products.
Q2 Are you trading company or manufacturer?
A2 We are CHILWEE original factory, So the price has an advantage.
Q3 Product life?
A3 Our products are maintenance free and sealed, and advanced technology is adopted, with long service life and no problems in normal use.
Q4 Difficulty of product use?
A4 It is easy to use, Please operate according to the manual.
Q5 Are your parameters true?
A5 All our parameters are real, with the highest quantity, competitive price and long life cycle.
Q6 OEM Service?
A6 If your purchase quantity reaches a certain quantity, we can also print your trademark on the battery box.
Q7 What is your MOQ?
A7 The minimum order quantity is measured by what product.
Q8 What is your term of payment?
A8 The time limit of payment needs to be communicated, and the contract should be drawn up according to the time limit stipulated in the contract.
Q9 What is your products standardization?
A9 First, according to Chinese standards, and then international export standards.
Q10 How long it takes you to provide the designing options for us?
A10 It depends on your design requirements and needs to be judged according to the degree of difficulty.
